Blowing Diesel

05+ Pitman Arm, Track Bar, & Sway Bar Bracket Kit

05+ Pitman Arm, Track Bar, & Sway Bar Bracket Kit

Regular price $674.07 USD
Regular price Sale price $674.07 USD
Sale Sold out
Shipping calculated at checkout.

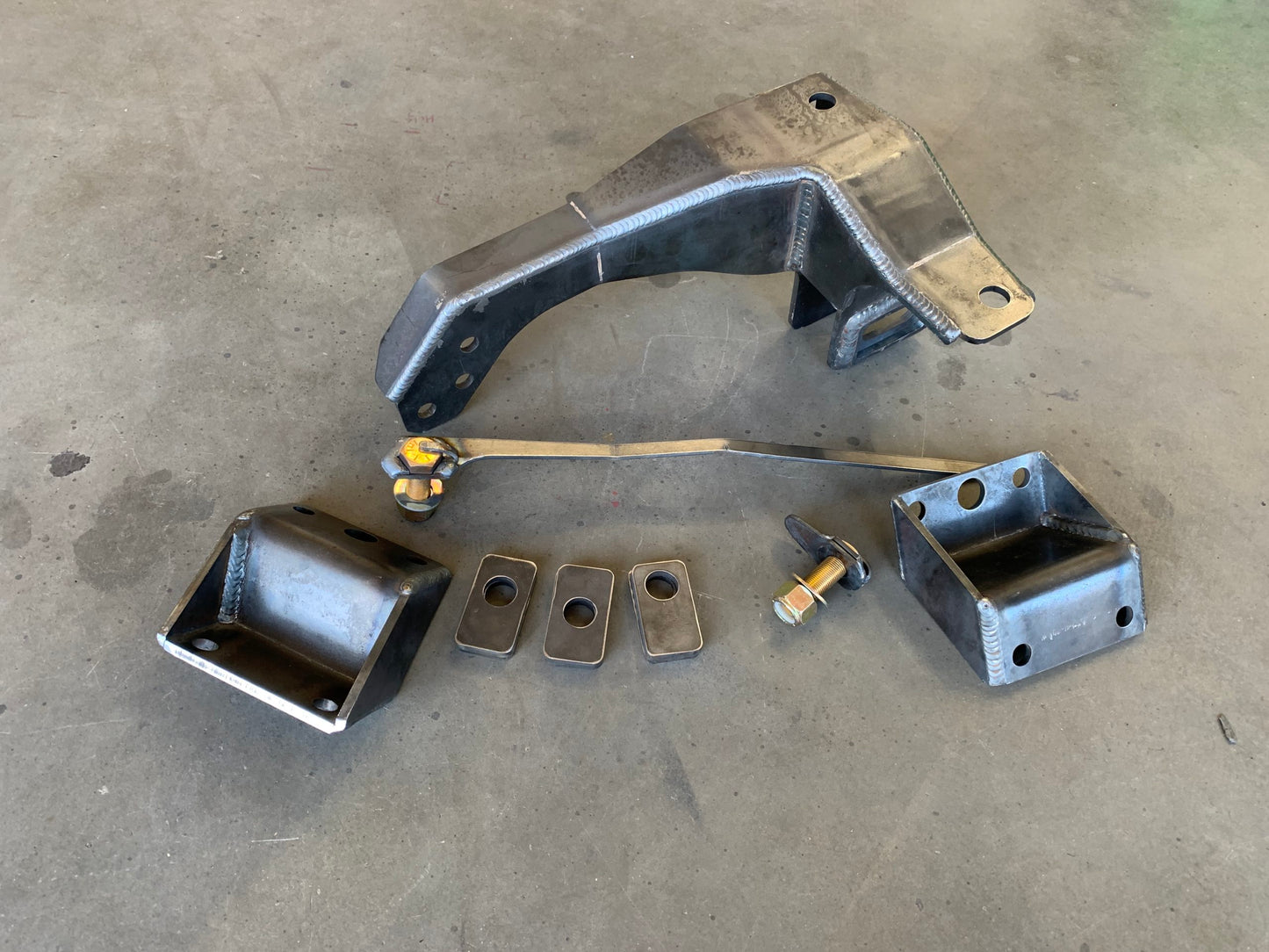

Kit Includes:

  • Track Bar Bracket for 05+ axle swaps on OBS trucks 1992-97 F-250 and F-350s
  • Sway Bar Brackets for 05+ axle swaps on OBS trucks 1992-97 F-250 and F-350s
  • Ford OBS Pitman Arm 05+ Superduty Swap

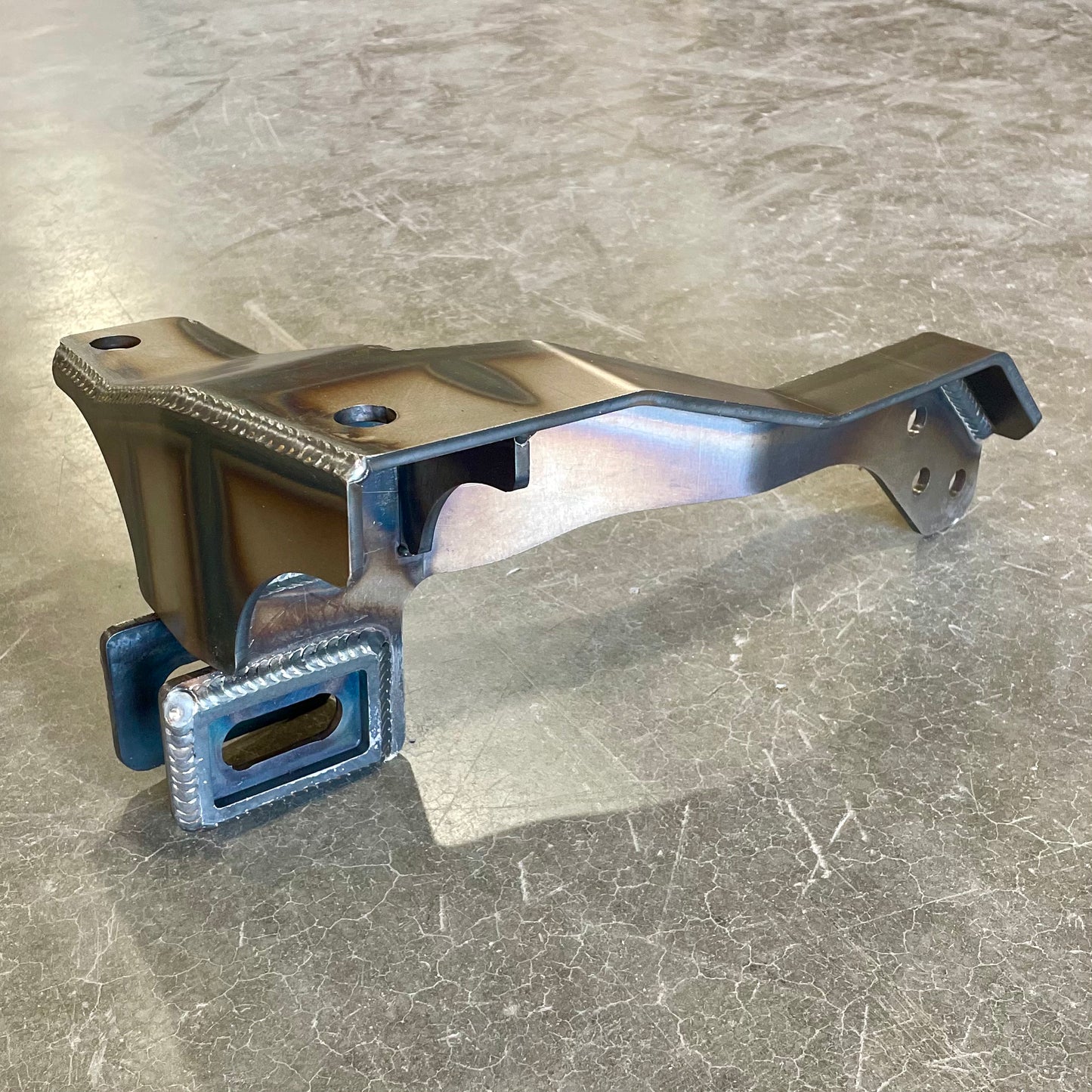

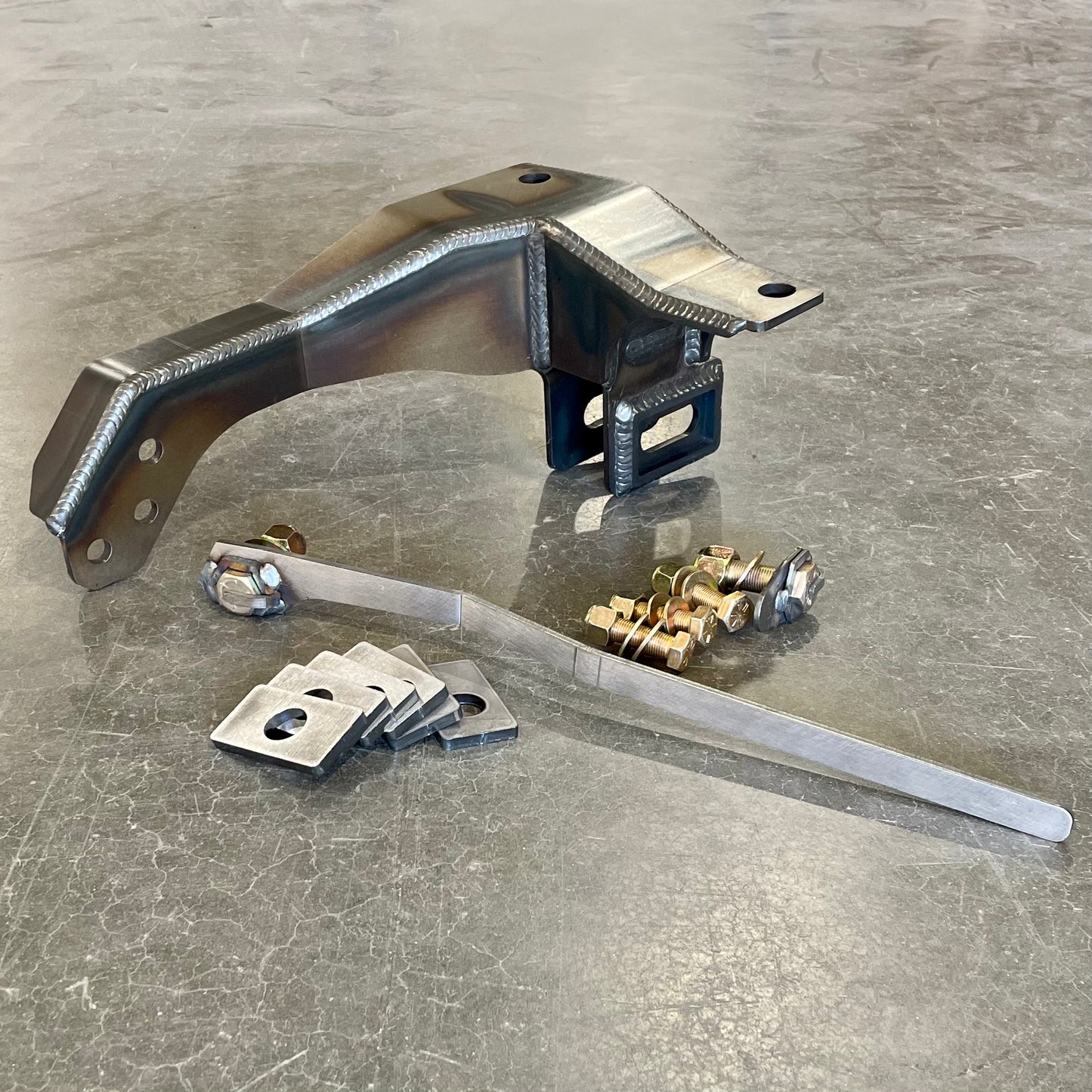

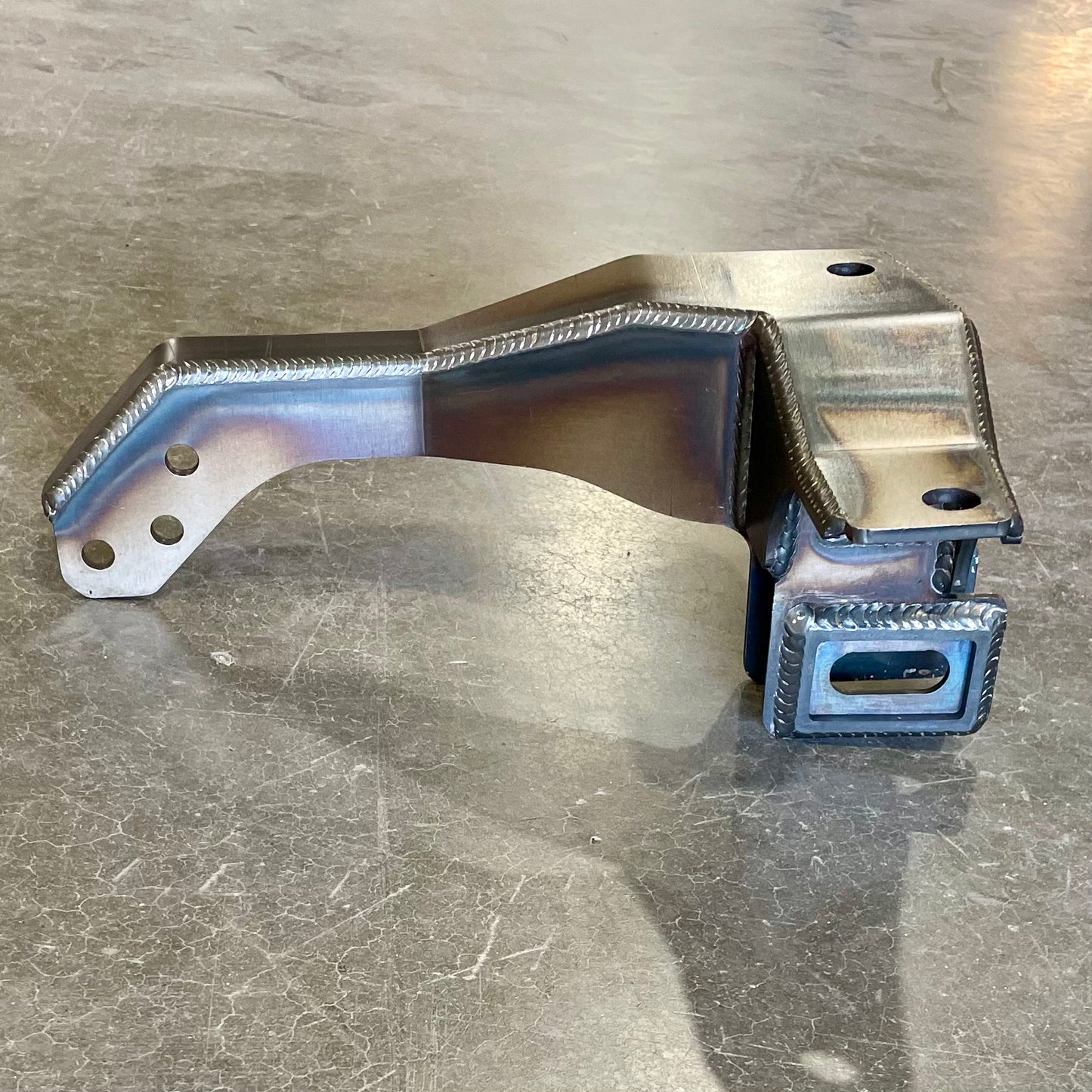

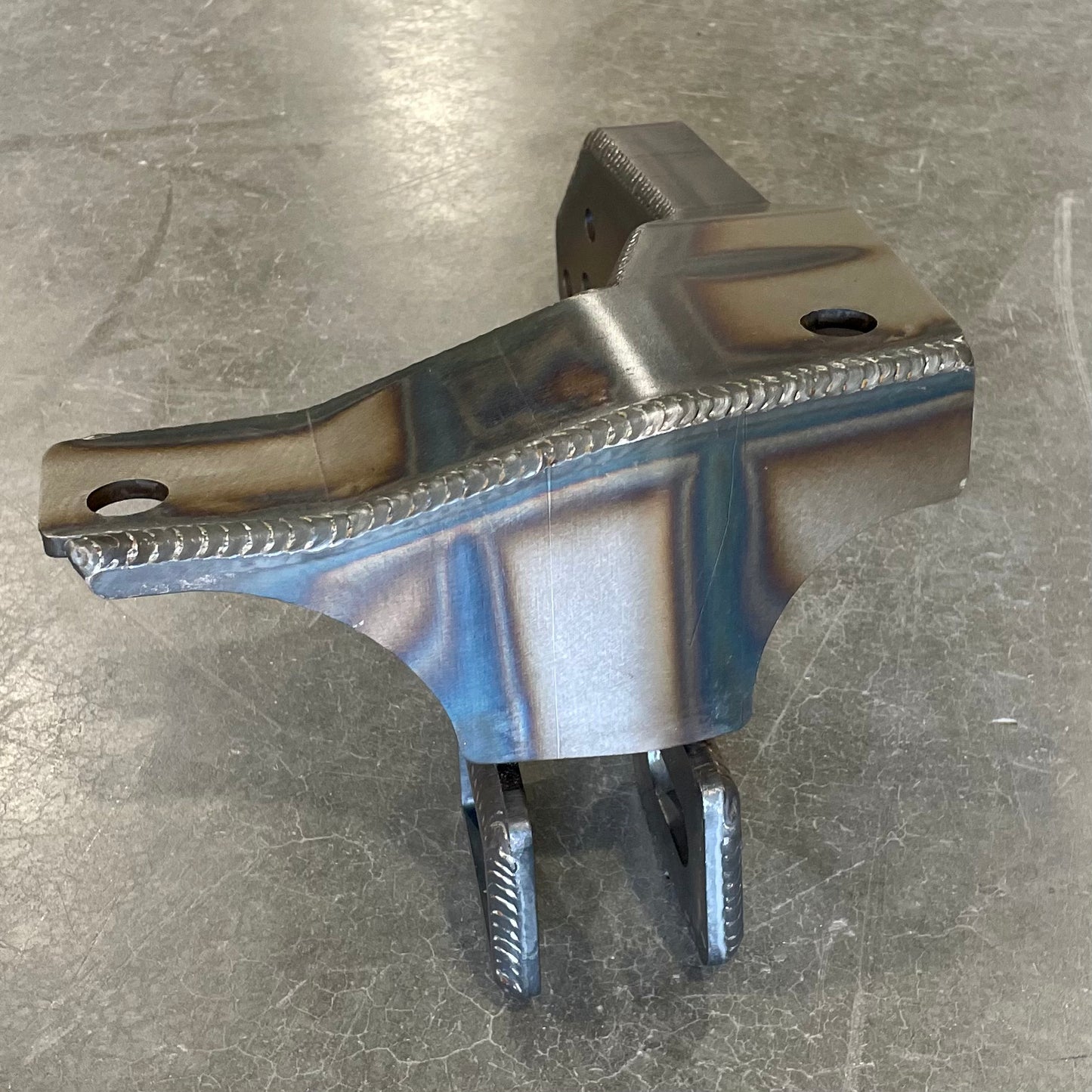

      Track Bar Bracket: for 05+ axle swaps on OBS trucks 1992-97 F-250 and F-350s. It bolts onto factory location on frame, you will need to remove 2 studs and drill them out to 11/16" to use 5/8" bolts, as well as drill 3 9/16" holes on the crossmember. To get the best track bar and drag link angles, the use of the F-350 pitman arm is recommended. The Track Bar Bracket comes with 3 pairs of adjustment plates to perfectly center your axle under your truck.

      • This bracket is designed to work on trucks with a stock pitman arm, from stock to 3" of lift
      • This Bracket is designed to work on trucks with a stock pitman arm, from stock to 3" of lift
      • It will also work perfectly with the Super Duty gearbox
      • All hardware to install on frame is included
      • Built from 1/4 metal CNC cut and MIG welded
      • Fits F-250 and F-350 trucks 1987-1997 2wd and 4wd
      • Please allow 1-2 weeks of lead time on this it item

      **Minor trimming to the engine crossmember might be required for track bar clearance (1/6" - 1/4")

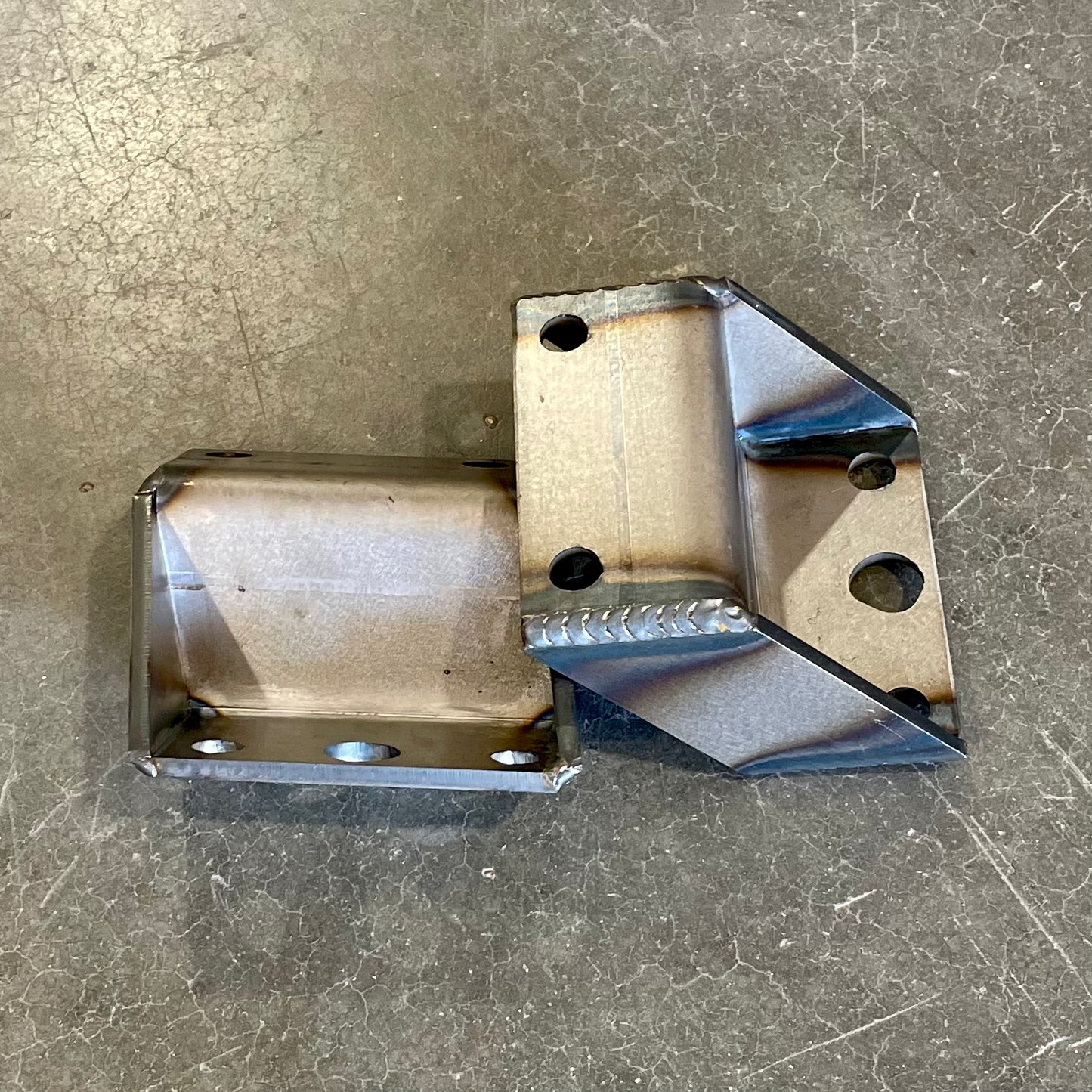

      Sway Bar Brackets: If you have swapped your OBS to 05+ axles, you need these brackets to relocate your sway bar to the front of the frame. They are completely bolt-on using existing holes on your frame.

      Sway bar brackets come in a set of 2

      Pitman Arm: Stock 85-97 F350 4x4 pitman arm, this pitman arm will give you the turning radius on the stock OBS gearbox and is reamed to accept the 05+ drag link.

      Helpful Videos:

      Sway Bar Bracket Install

      Track Bar Bracket
      2008+ Coil Bucket Spacers
      All products are made to order and all sales are final. No returns or refunds.

      Please be advised that all cancellation requests will incur a 5% inconvenience fee/processing fee. Cancellation requests must be submitted to and acknowledged by Blowing Diesel Designs, before product(s) are shipped in order to effectively make a cancellation

      ATTENTION! INTERNATIONAL CUSTOMERS: Import duties, taxes, and custom charges are not included in the item price or shipping costs. These charges are the buyer's responsibility. Please check with your country's customs office to determine what these additional costs will be prior to purchasing.

      ***FOR OFF-ROAD USE ONLY***
