Ford OBS 05+ Axle Swap Kit (4-7" Lift)

The BDD Ford OBS 05+ Axle Swap Kit (4-7" Lift) is designed to convert 1992-1997 Ford F-250 and F-350 trucks to a 2005+ Super Duty front axle and coil spring suspension. This bolt-on axle swap system provides the core brackets and steering components needed to install the newer Super Duty front suspension while making the conversion as straightforward as possible.

Designed specifically around the OBS Ford frame, the brackets utilize existing factory mounting locations wherever possible, with only a limited number of additional holes required. All brackets are constructed from 1/4" pickled and oiled (P&O) steel, CNC cut, precision bent, and fully MIG welded.

This kit is designed for trucks running 4-7" of lift and includes a BDD drop track bar bracket and drop pitman arm to help maintain proper steering and track bar geometry. The track bar bracket is designed to retain the OEM 2005+ Super Duty track bar, eliminating the need for an aftermarket adjustable track bar in compatible applications.

2WD OBS Axle Swap Option

Our 2WD option allows OBS 2WD trucks to be converted to the 2005+ Super Duty front axle and coil spring suspension while utilizing as many existing frame holes as possible.

With the 2WD configuration, installation requires only two additional holes per coil bucket and three additional holes per radius arm bracket, reducing the amount of frame drilling required for the conversion.

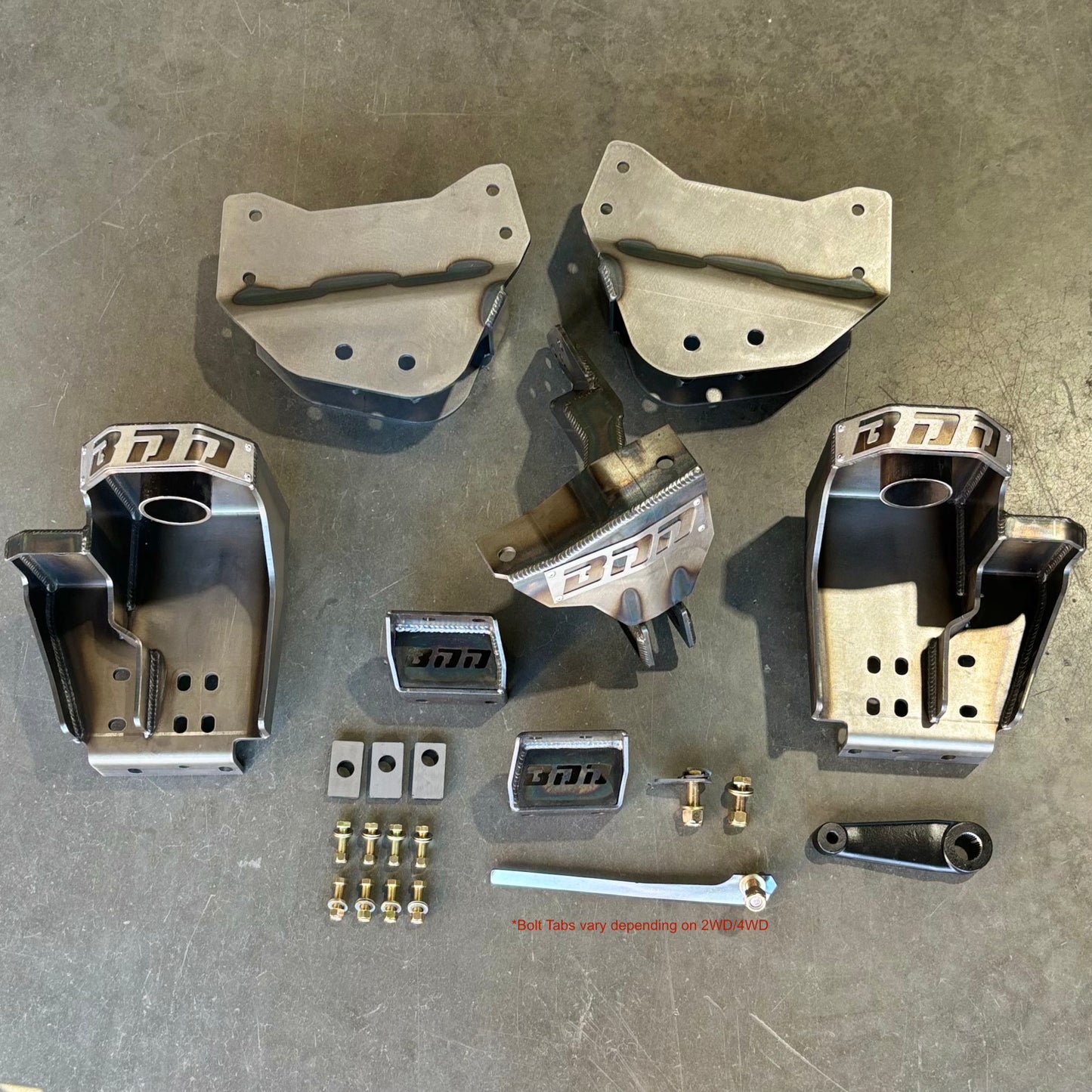

Kit Includes

• Coil spring buckets

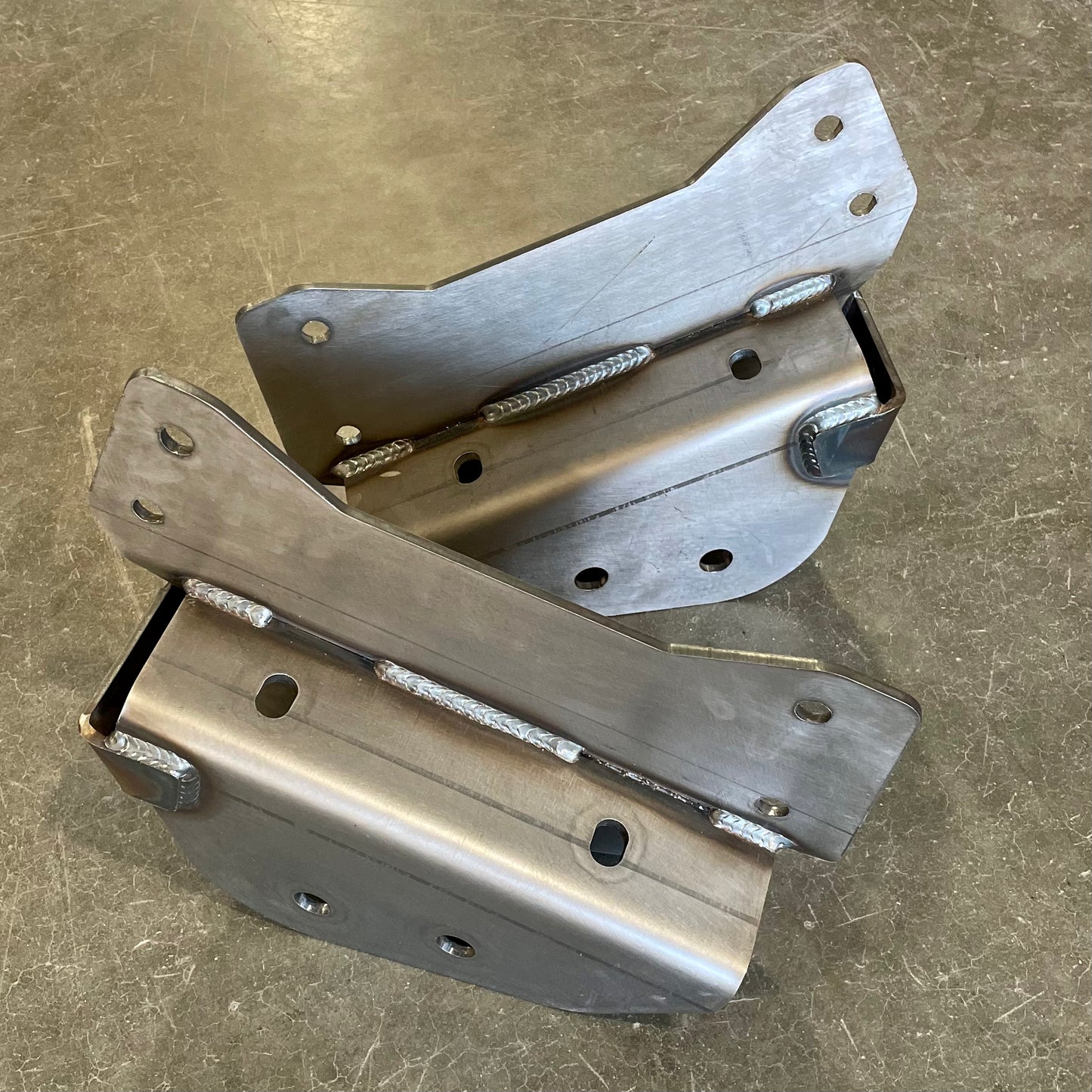

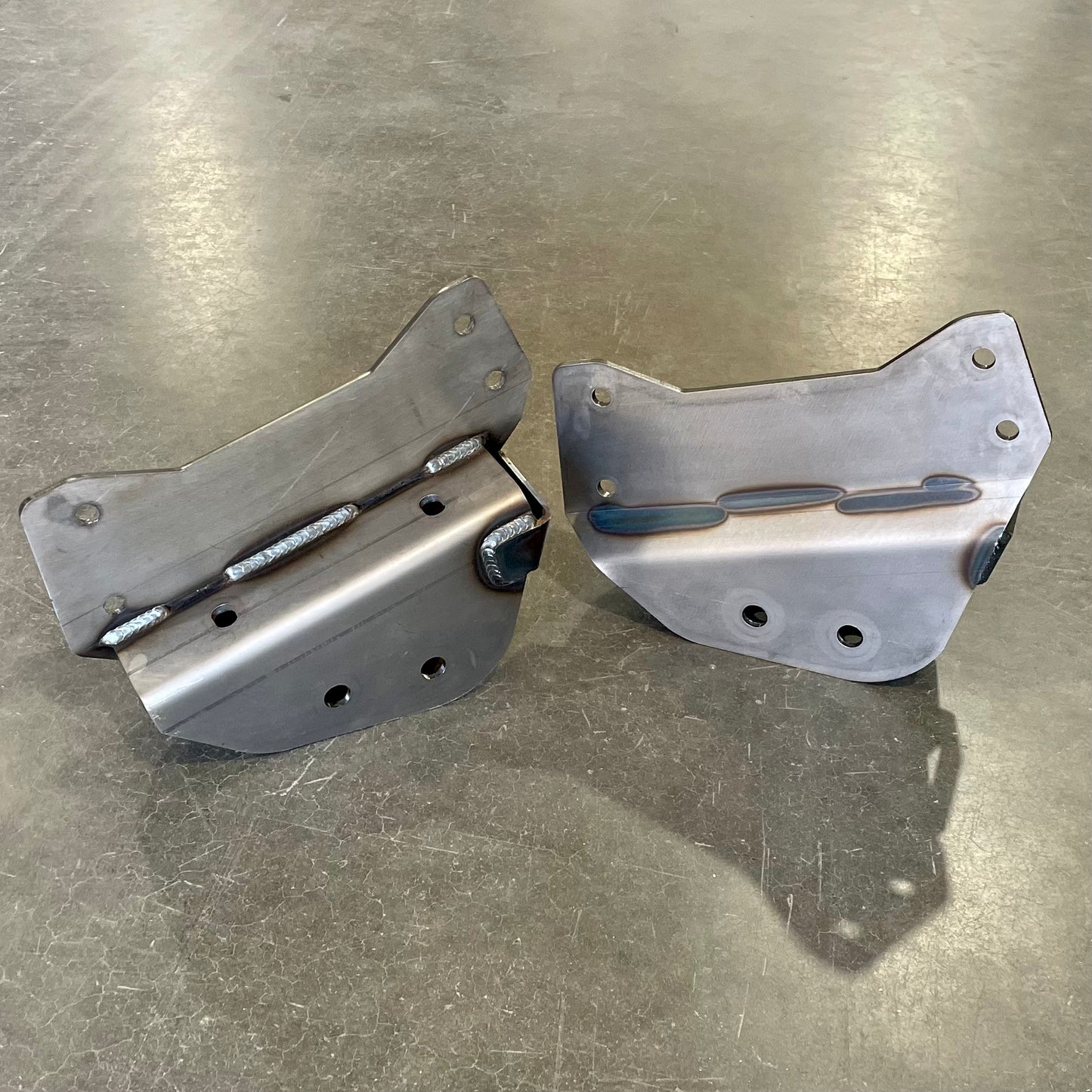

• Radius arm brackets
• Drop track bar bracket

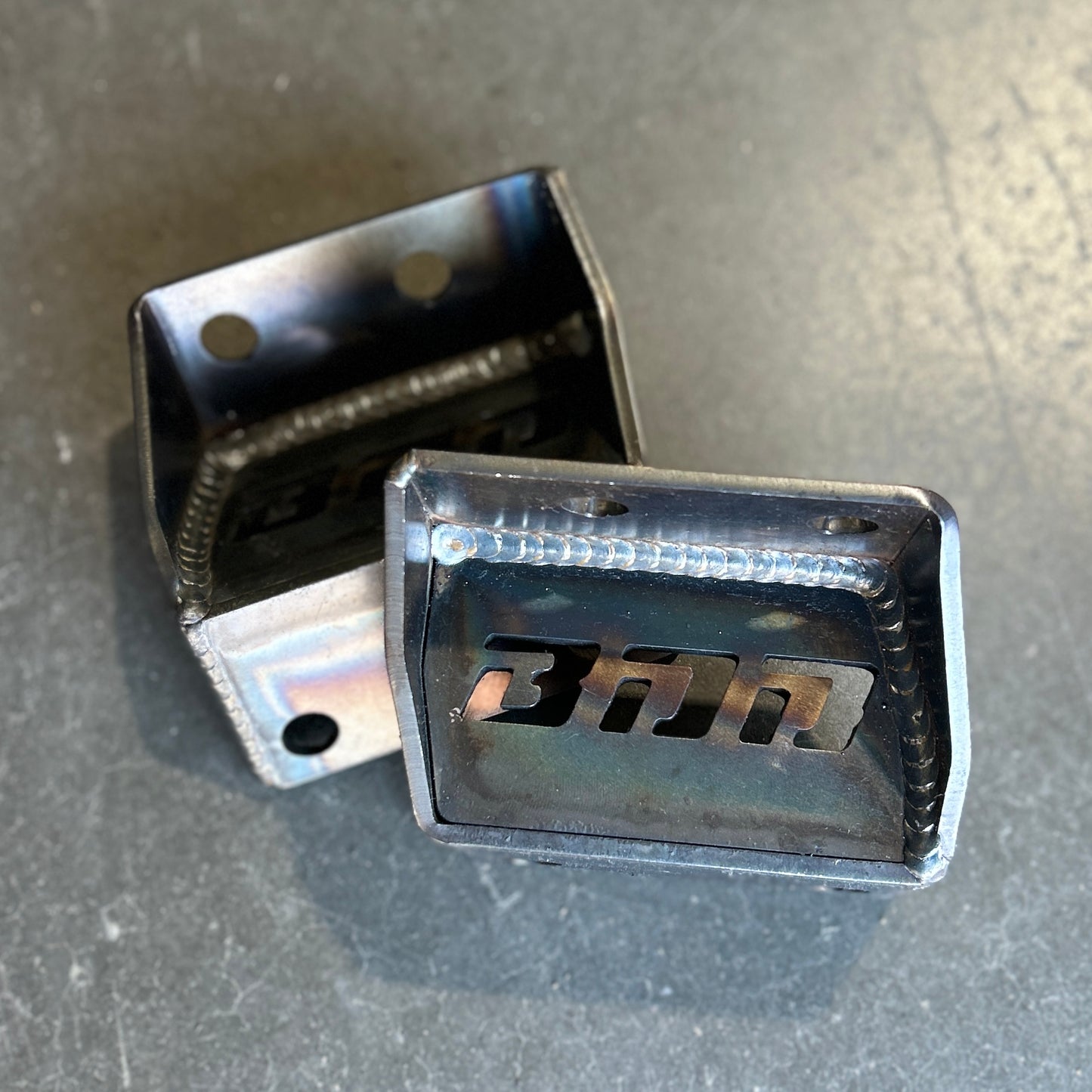

• Sway bar brackets

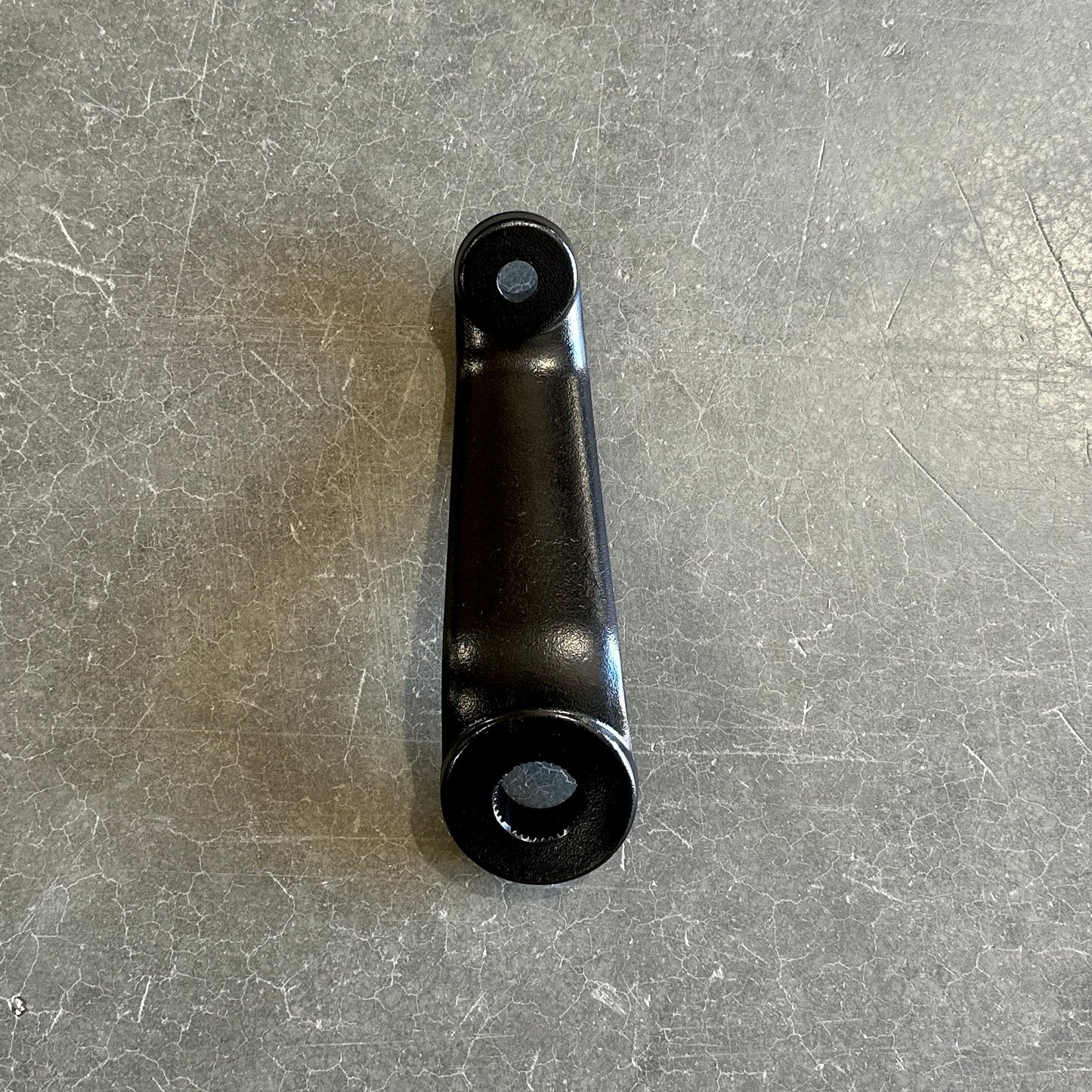

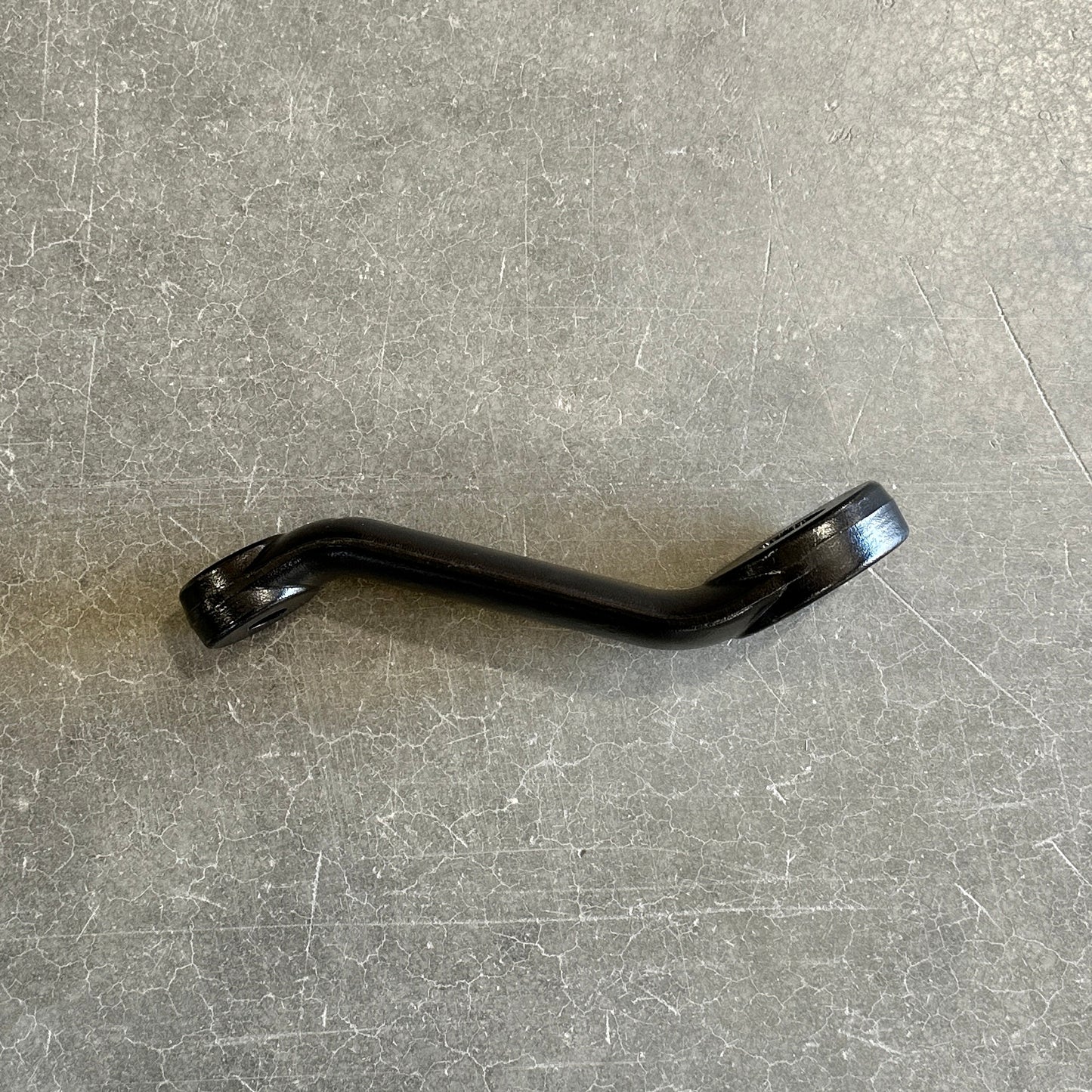

• Drop reamed pitman arm
• Grade 8 mounting hardware
• Bolt tabs:
  • 2WD kits include two short tabs
  • 4WD kits include one short tab and one long tab

2005+ Super Duty Parts Required to Complete the Swap

• Front axle
• Track bar
• Radius arms
• 4-7" coil springs
• Steering components
• Sway bar and end links
• 2005-2007 front brake lines

Fitment notes

• Fits 1980-1997 Ford F-250 & F-350 (OBS)
• Designed for a 2005+ Super Duty front axle swap
• Requires a minimum 4" lift spring and maximum 7" lift spring
• F-150, Bronco, 1980-1991, and 2WD applications require additional holes to be drilled
• ZF5-equipped trucks require crossmember modification
• Minor engine crossmember trimming may be required for track bar clearance, approximately 1/16"-1/4"

Important Lift Kit Information

This is an axle swap conversion kit and is not a complete lift kit. It allows the 2005+ Super Duty axle and suspension components to be installed under the OBS Ford and used with compatible aftermarket lift components.

To complete the suspension setup, you will also need the appropriate 4-7" coil springs, shocks, and radius arm solution, such as compatible drop radius arm brackets or BDD Fabricated Radius Arms.

Additional Notes

• Ships in raw steel
• Driveshaft modifications may be required
• Front wheel bolt pattern will change to 8x170
• Minimum 17" wheel required
• No-logo option is available for the coil buckets and drop track bar bracket; leave a note under Order Special Instructions
• Allow 2+ weeks lead time to ship

Additional Resources

Visit the Blowing Diesel Amazon Storefront for suggested components and tools to help complete your OBS 05+ axle swap.

Amazon Storefront links are part of a commission-based affiliate program.

Downloadable Installation Instructions

All products are made to order and all sales are final. No returns or refunds.

For buyers outside of AZ and/or for purchases where sales tax is not applied. Use tax is the buyer's responsibility.  Please refer to your home state for guidance.

Please be advised that all cancellation requests will incur a 5% inconvenience fee/processing fee. Cancellation requests must be submitted to and acknowledged by Blowing Diesel Designs, before product(s) are shipped in order to effectively make a cancellation. For special/bulk orders a minimum of 25% cancellation/restock fee will be assessed.

ATTENTION! INTERNATIONAL CUSTOMERS: Import duties, taxes, and custom charges are not included in the item price or shipping costs. These charges are the buyer's responsibility. Please check with your country's customs office to determine what these additional costs will be prior to purchasing.

***FOR OFF-ROAD USE ONLY***
